Discontinued

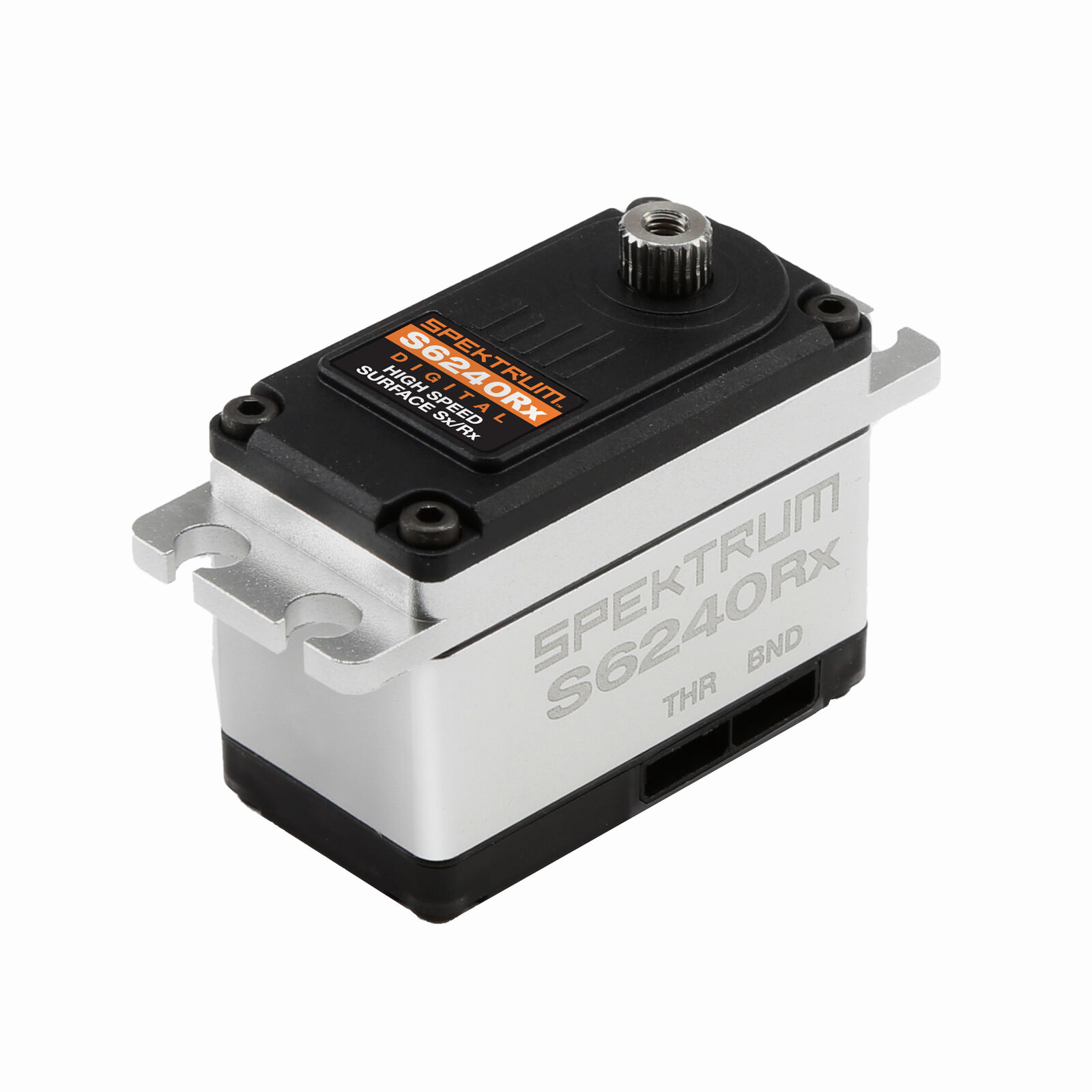

S6240RX Standard Digital High Speed Metal Gear Surface Servo with DSMR Receiver

Spektrum - Item No. SPMSS6240RX
3.1 out of 5 Customer Rating

Key Features

  • Renowned S6240 Performance with built in high speed 2 Channel DSMR Receiver
  • Save Weight, Save Space, Save money (from separately from buying S6240 servo and SR2010 receiver)
  • Fits in many of the popular 1/10th 2WD Class chassis from TLR , Kyosho, and Team Associated

Overview

The ingenious S6240RX saves weight and space by combining a digital high-speed metal geared servo with a 2-channel DSMR receiver in a single unit. The servo itself features the durability of metal gears and is capable of delivering lightning-fast transit times along with 208 oz-in of torque.

The built-in SR2010 receiver is just as impressive. It gives racers a sense of response that feels almost instantaneous, especially when used with a DSMR radio capable of 5.5ms transmission. As if that weren't enough, the S6240RX packs all this capability into a servo case that is shorter than many standard 1/10-scale servos.

This is a great match for the TLR 22 2wd series of vehicles that will allow racers to shave even more weight and off their builds than ever before.

Requires a DSMR transmitter capable of a 5.5ms frame rate.

For complete details on waterproof standards, please refer to the product instruction manual.

Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or Spektrum products.

Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.

PRODUCT SPECS

Application
1/10 Buggy, Truck, On-Road
Band
2.4GHz
Bearing
Dual
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.87 in (200mm)
Current Draw Idle
9.8 mA @ 6.0V
Current Draw Stall
4.9A @ 6.0V
Deadband
4ms
Maximum Servo Torque
208 oz-in (15.0kg-cm) @ 6.0V
Modulation
DSMR
Product Height
1.18 in (30mm)
Product Length
1.61 in (41mm)
Product Weight
2.0 oz (56g)
Product Width
0.82 in (20.9mm)
Programmable
No
Rotation Range
120 deg
Servo Operating Voltage
6.0V
Servo Size Category
Standard
Servo Type
Digital
Spline Count
23 Teeth
Wire Gauge
22 AWG
