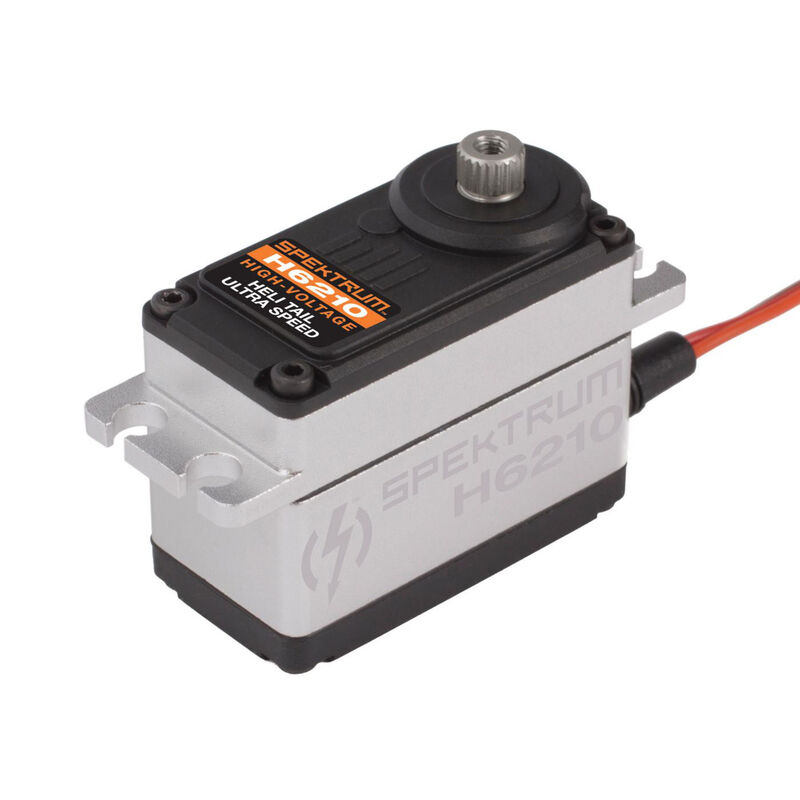

H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo
H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo
H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo
Discontinued

H6210 Standard Digital HV Ultra Speed Metal Gear Heli Tail Servo

Spektrum - Item No. SPMSH6210
5 out of 5 Customer Rating
H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo
H6360 Standard Digital HV Brushless Mid Torque Ultra Speed Heli Tail Servo
SPMSH6360
View Alternate Product Details

Quick Links

icon-pdf-download Manuals & Support

Key Features

  • Quick release for servo leads simplify wiring and maintenance
  • Designed for tail rotor control on RC helicopters
  • Quick release servo leads
  • HV compatible (up to 8.4V)
  • 0.03 sec/60° transit speed 8.4V
  • Metal gears
  • Aluminum center section case
  • Frequency: 333Hz
  • Center Position: 1520µs

Overview

This is a high voltage, digital, high speed tail servo for 550 to 700 size helis. These servos allow for clean wiring and are purpose-built for tail control on high performance RC helicopters.

PRODUCT SPECS

Bearing
Dual
Bushing Or Bearing
Bearing
Gear Type
Metal
Maximum Servo Torque
79.0 oz-in (5.69 kg-cm) @ 6.0V; 107 oz-in (7.7 kg-cm) @ 8.4V
Product Height
1.25" (31.8mm)
Product Length
1.61" (40.9mm)
Product Weight
2.20 oz (62.4 g)
Product Width
0.82" (20.9mm)
Programmable
No
Servo Operating Voltage
4.8 - 8.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
