Firma 30A Brushless Smart ESC / 4500Kv Motor Combo: Minis
New

Firma 30A Brushless Smart ESC / 4500Kv Motor Combo: Minis

Spektrum - Item No. SPMXSEMC14
5 out of 5 Customer Rating
$89.99
RC Club points earned on this item shown at checkout.

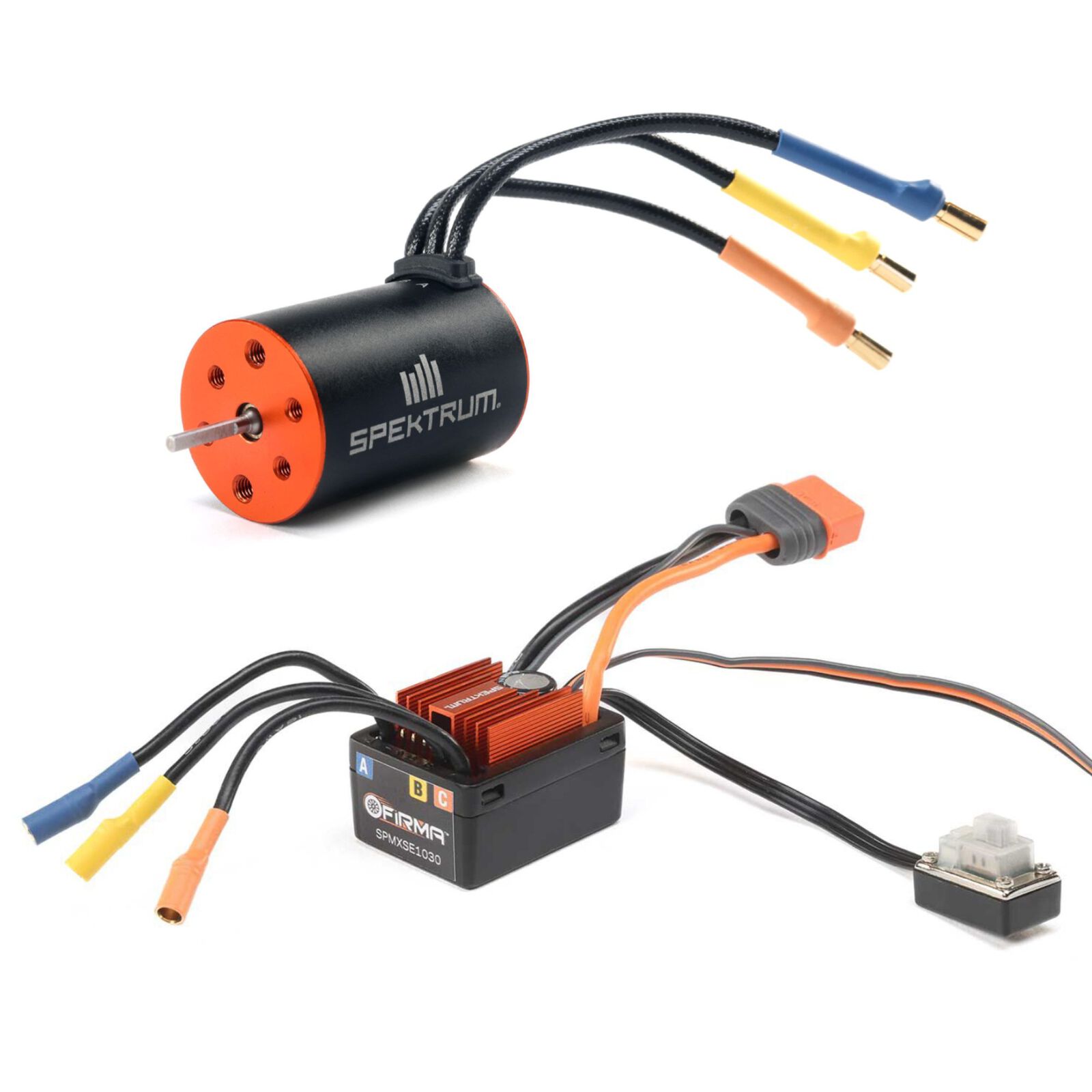

(1) Spektrum Firma 30A Brushless Smart ESC

(1) Spektrum Firma 2436 4500Kv 4-Pole Brushless Motor

(1) Product Manual

Designed for the Losi Mini-T, Mini-B, Mini Drag, and Mini JRX2

Quick Links

icon-pdf-download Manuals & Support

Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Overview

Feature-packed Spektrum™ Firma™ Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance — while feeding real-time telemetry straight to your Spektrum™ transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.

Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Features

  • Smart all-in-one telemetry
  • Waterproof (see instructions for details)
  • Multiple programming options
  • Multi-point protection

The Smart data wire on the innovative IC3™ connector replaces sensors, sending telemetry information to the transmitter directly from the Firma™ Smart ESC.

PRODUCT SPECS

Application
1/16 to 1/18th scale mini sized vehicles
BEC Continous Current
3A
Low-Voltage Cutoff Programmable
Yes
Number of Poles
4
Output Connector
3.5mm Bullet
Overload Protection
Yes
Shaft Diameter
0.08" (2 mm)
BEC
Yes
BEC Voltage
6V / 7.4V
Input Voltage
2S - 3S LiPo | 5C - 9C NiMH
Motor Output Lead
3.5mm Bullet
RPM/Volt (Kv)
4500Kv
Sensored
No
Shaft Length
0.47" (12 mm)
Speed Control
Included
Technology
Smart
Amperage
30A
BEC Type
Linear
Brakes
Yes
Programmable
Yes
Bushing Or Bearing
Bearing
Forward
Yes
Reverse
Yes
Maximum Burst Current
100A
Maximum Continuous Current
30A
Motor Type
Brushless
Connector Type
IC3
ESC Type
Brushless
