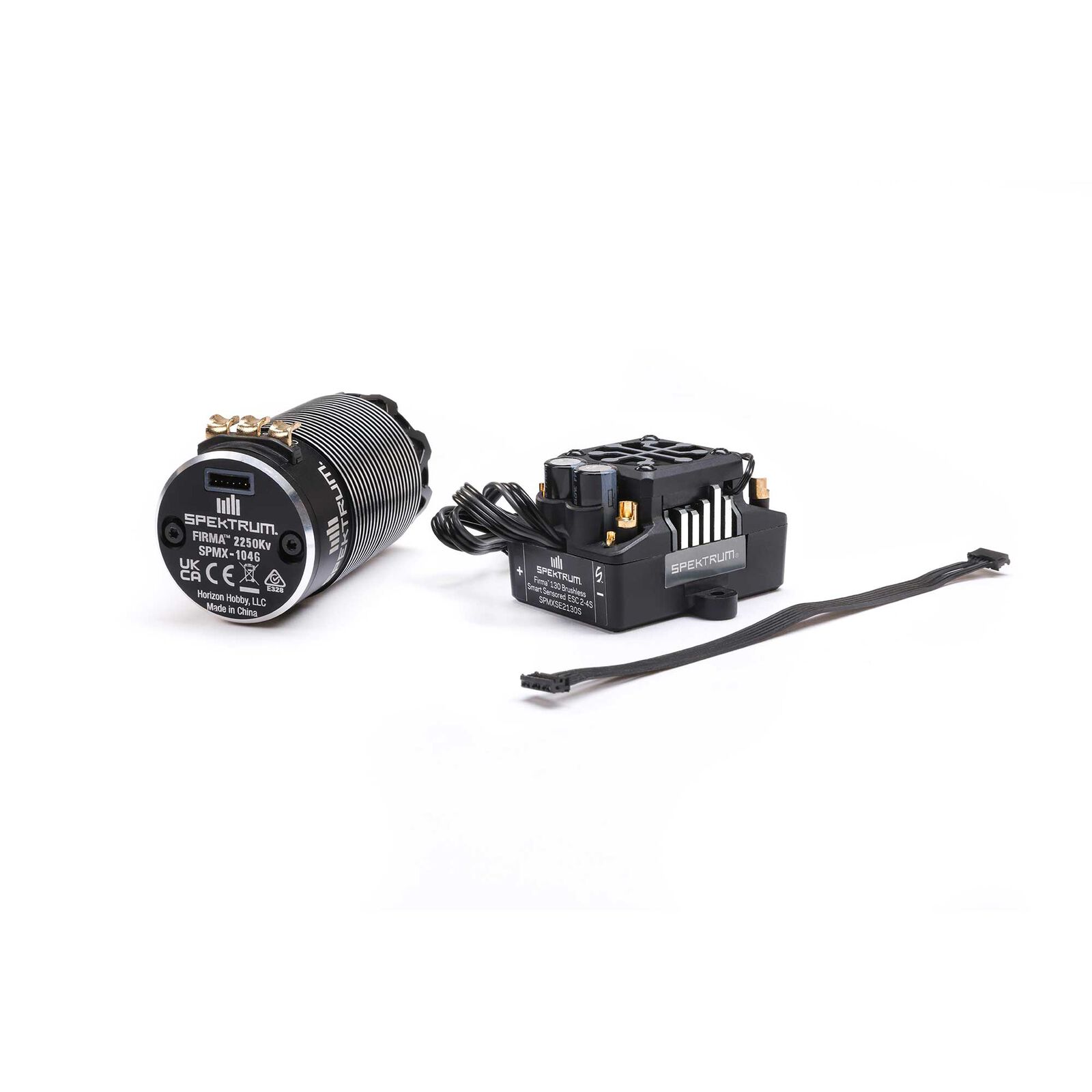

Firma 130A Brushless Smart ESC / 2250Kv Sensored Motor Combo
(1) Spektrum™ Firma™ 130A Black Edition Sensored Brushless Smart ESC
(1) Spektrum™ Firma™ 4274 2250Kv 4-Pole Sensored Brushless Motor
(1) Product Manual
(1) Spektrum™ Surface Receiver
(1) Spektrum Smart Technology LiPo Battery
(1) Spektrum Transmitter
Quick Links
Manuals & SupportSpektrum Firma 130A ESC / 2250Kv Motor Combo Overview
The Spektrum Firma Sensored ESC System is a combo that includes a Sensored 2250kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale truggies.
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
This ESC comes bundled with a Spektrum Firma 2250Kv Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.
Spektrum Firma 130A ESC / 2250Kv Motor Combo Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- Comes bundled with Spektrum Firma 2250Kv Brushless Motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backward compatible with EC™ connectors
- Limited 1-year warranty
EC5™ BACKWARDS COMPATIBLE
Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5™ connector equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. An EC5 is also compatible with Firma ESCs for basic operation and ESC telemetry.
ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*
*See the compatibility chart for more information.
SMART TECHNOLOGY BATTERY DATA
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!
MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
FAST, POWERFUL M4 PROCESSOR
The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
