Dual 22.2V (44.4V) 5000mAh 6S x2 100C Smart LiPo Battery: IC5
(1) Dual 22.2V (44.4V) 5000mAh 6S x2 100C Smart LiPo Battery: IC5
(1) Instruction Sheet
Quick Links
Manuals & SupportSpektrum 22.2V 5000mAh 6S Smart LiPo Battery Overview
The Spektrum™ Dual 22.2V (44.4V) 5000mAh 6S x2 100C Smart LiPo Battery features a unique size and shape that's custom-tailored for use in 12S-compatible 700 and other class helicopters including the Blade Fusion 700. This G1 Smart battery includes balance connectors so it can be charged on non-Smart chargers while still providing the benefit of automatic self-discharge to storage voltage. Or, when a Spektrum™ Smart LiPo battery is connected to a Spektrum Smart charger, unique parameters and health of the battery upload from the Smart memory microchip integrated into the battery. Through the charger, you can view and set preferences such as charge rates, then all you have to do is let the charger start automatically while Smart technology takes care of the rest!
This pack is perfect for high-performance models, like 700-size electric helis, and is a great option to give these powerful helicopters more punch and power.
Spektrum Smart LiPo Batteries Store Unique Data, such as:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart LiPo batteries also maintain an error log, including the number of overheating, over-discharging, and overcharging incidents, which can be helpful data in assuring that the battery you've chosen is correct for the application. A Smart Battery automatically uploads its charge parameters to a Spektrum Smart Charger, making charging simple. The charge rate of every Smart Battery is customizable, allowing you to take full advantage of packs with faster charge ratings.
Spektrum 22.2V 5000mAh 6S Smart LiPo Battery Features
- Simpler and safer to use
- Integrated microchips store unique parameters for each battery
- Smart discharge allows batteries to discharge to a safe voltage automatically
- Powerful 100C continuous discharge rating to deliver maximum performance and longevity
- Save time and hassle while improving battery life
- A protective outer metal alloy sheet helps dissipate heat, hold battery shape, and increase durability
- No soldering is required. Equipped with IC5® connector that is compatible with EC5™
![Diagram of smart battery technology](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX_DATAWIRE_PP.jpg)
Smart Battery Technology
When connected to a Spektrum Smart charger, the unique parameters and health of your Smart LiPo battery are uploaded from the Smart memory microchip integrated into the battery. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the "start" button. Smart technology will take care of the rest. Every Smart LiPo battery is factory-assembled with the next-generation IC5™ output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers.
![Screenshot Data rich log diagram with battery information](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX_CHIP_PP.jpg)
Data Rich
An integrated microchip allows each Smart Battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as overcharge, over-discharge, and overtemperature. This lets you make the most informed decision about each battery when getting your gear ready for a day at the field or the track.

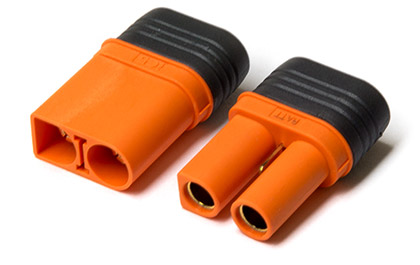

![IC5 Connector offers a solid connection with Spektrum Smart devices and Smart Batteries](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX_IC5_PP_01.jpg)
IC5 Connector
The innovative Smart connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC5 connector. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. There's no need to worry for those using the popular EC5 connectors. The IC5 connector is entirely backward compatible with existing connectors so that you can use Smart Batteries with older systems, but only when connected to a Spektrum Smart device are all the benefits of Smart technology evident.

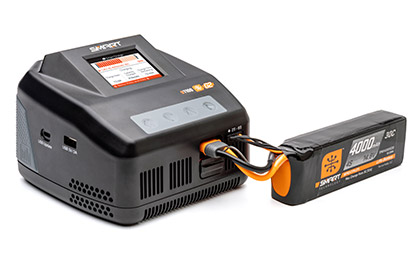

![Quick and easy setup between smart battery and Spektrum Smart device](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SMART_BATT_PP_6.jpg)
Simple and Quick
Preset charge, discharge, and storage parameters are automatically relayed to a Spektrum Smart Charger, making charging as simple as pressing the “start” button. The charge rate of individual batteries can be user-customized, allowing you to take full advantage of packs with faster charge ratings. The integrated microchip on each battery will remember the last charging rate you set, so the next time you plug it in, these settings will automatically populate, so all you have to do is press “Start.”
![Screenshot of smart discharge data helps extend battery life](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX-Auto-Storage-Screen_PP.jpg)
Smart Discharge
LiPo batteries with Spektrum Smart™ technology practically take care of themselves. When programmed with a Spektrum Smart Charger, Smart Batteries will automatically discharge to your predetermined storage voltage when left to rest for a period you choose, between 12 and 240 hours. This feature will help extend the life of your Smart Batteries by preventing them from sitting fully charged for an extended period, which can damage the chemical integrity of Lithium Polymer cells. This unique feature results in longer battery life expectancy and better performance over the pack's life.
