Manuals & SupportKey Features
- Long throw offset servo is perfect for controlling ailerons on ultra micro models
- Offset provides for built-in differential
- JST-SHR Connector
Overview

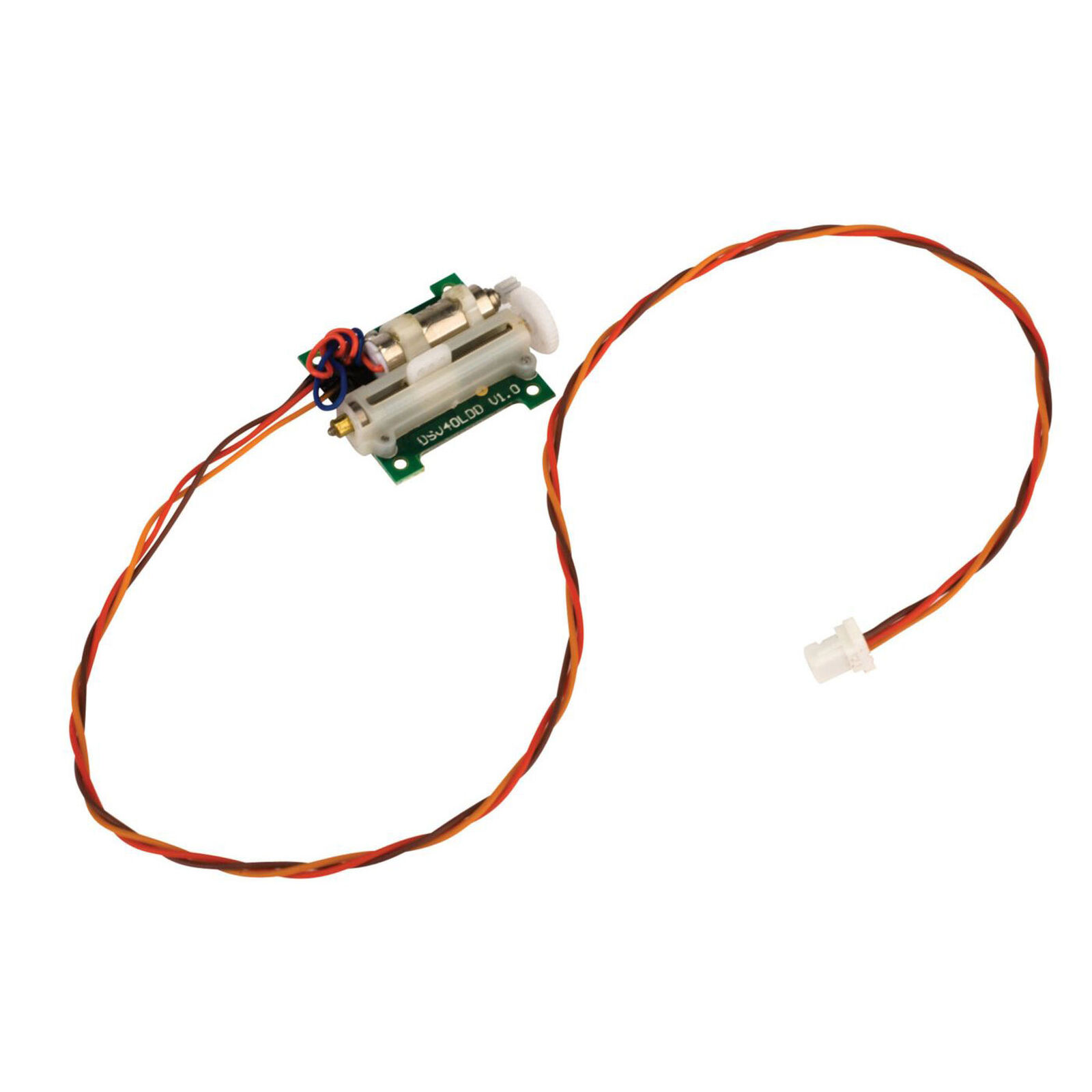

The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.
Detailed Information
Click Here to see Spektrum's Servo Reference Chart
PRODUCT SPECS
Application
Airplane
Bearing
Single
Bushing Or Bearing
Bearing
Connector Type
JST-SHR 1.0 mm
Gear Type
Nylon
Input Voltage
3.2V-4.2V
Maximum Servo Speed
0.10 @ 4.2V
Maximum Servo Torque
100 G (3.5 oz) @ 4.2V
Motor Type
Brushed
Product Application
Air
Product Height
0.33" (8 mm)
Product Length
0.87" (22 mm)
Product Weight
0.10 oz (230 g)
Product Width
0.66" (17 mm)
Programmable
Yes
Servo Operating Voltage
3.2 - 4.2V
Servo Size Category
Ultra Micro
Servo Type
Analog
